PACCAR ESA 5.7 Diagnostic Software — Kenworth & Peterbilt

PACCAR ESA 5.7.0 (Electronic Service Analyst) is PC-based PACCAR diagnostic software for Kenworth and Peterbilt trucks. This package includes 2025 SW programming files plus remote installation and configuration for one Windows PC. It is designed for technicians who need to communicate with supported cab, chassis and vehicle electronic controllers through an RP1210 data-link adapter.

Use PACCAR ESA software to read and clear supported fault codes, view controller information, verify electronic instrumentation, troubleshoot NAMUX systems, change available parameters and install compatible controller software files. We configure the application and your adapter remotely, then help you verify communication with the truck.

What Is PACCAR Electronic Service Analyst?

PACCAR Electronic Service Analyst, usually shortened to PACCAR ESA, communicates between a Windows laptop, an RP1210-compatible diagnostic adapter and supported electronic controllers on Kenworth and Peterbilt vehicles. The software is commonly used by independent repair shops, fleet maintenance departments and mobile technicians who service PACCAR-built trucks.

Unlike a generic code reader, ESA is focused on PACCAR vehicle electronics. Coverage and available functions vary by truck model, model year, controller, installed software and access level. For that reason, we recommend sending us the VIN, model, year and the exact task you need to perform before purchase.

PACCAR ESA home screen showing Connect, Diagnose, Monitor, Simulate and Program functions.

PACCAR ESA Software Functions

• Read active and inactive diagnostic trouble codes from supported vehicle controllers.
• Clear eligible fault codes after the underlying repair has been completed.
• View controller identification and live information available through the vehicle data link.
• Troubleshoot NAMUX electronic systems used on supported Kenworth and Peterbilt trucks.
• Verify electronic instrumentation and controller communication during diagnosis or module replacement.
• Change supported vehicle parameters when the controller, software level and permissions allow it.
• Flash compatible cab or chassis controllers using the included local SW programming files.

ESA simulation mode can help verify supported gauges and electronic instrumentation.

Programming is a higher-risk operation than reading codes. Stable vehicle voltage, the correct adapter, an uninterrupted USB connection and the exact compatible software file are essential. Never disconnect the laptop, adapter or battery support equipment while a controller update is in progress.

Example of a completed ICU flash operation. Programming requires stable vehicle power and an uninterrupted adapter connection.

Kenworth and Peterbilt Diagnostic Software Coverage

This Kenworth diagnostic software and Peterbilt diagnostic software package is intended for supported PACCAR vehicle electronic systems. Depending on the truck configuration, ESA may communicate with components such as instrument clusters, cab electronic control units, chassis nodes, HVAC controllers, steering-wheel or door modules and PACCAR display systems.

These systems appear across many Kenworth and Peterbilt platforms, but a model name alone does not guarantee every function. Trucks can be built with different engines, transmissions, brake systems and controller generations. Send us your truck model, year, VIN and desired operation so we can check the application before installation.

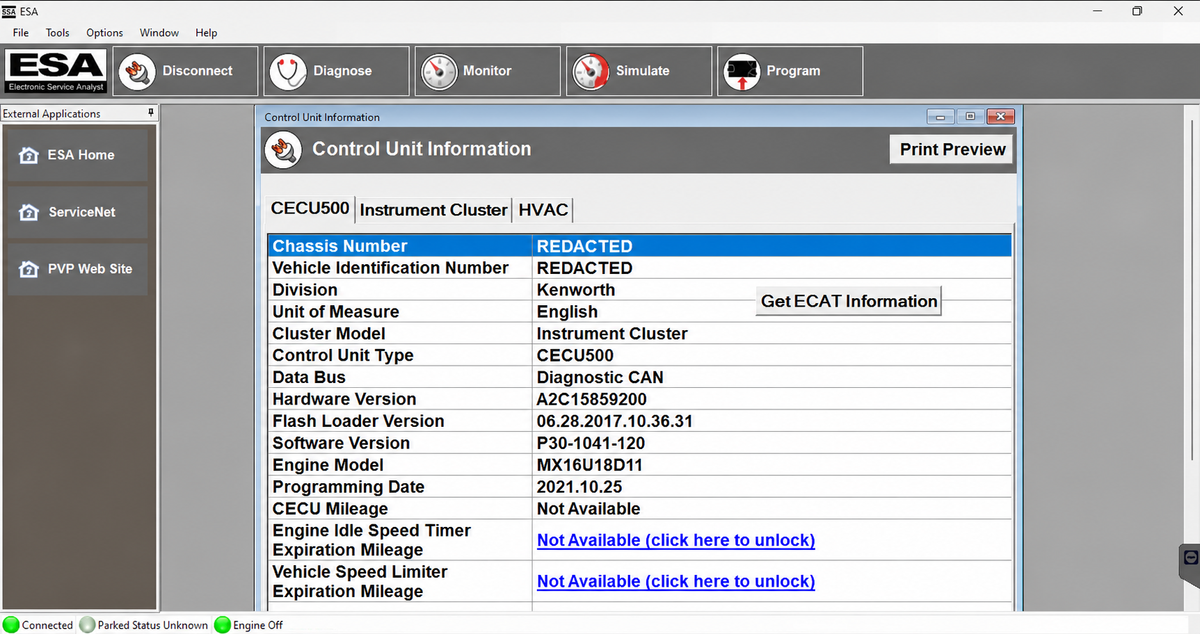

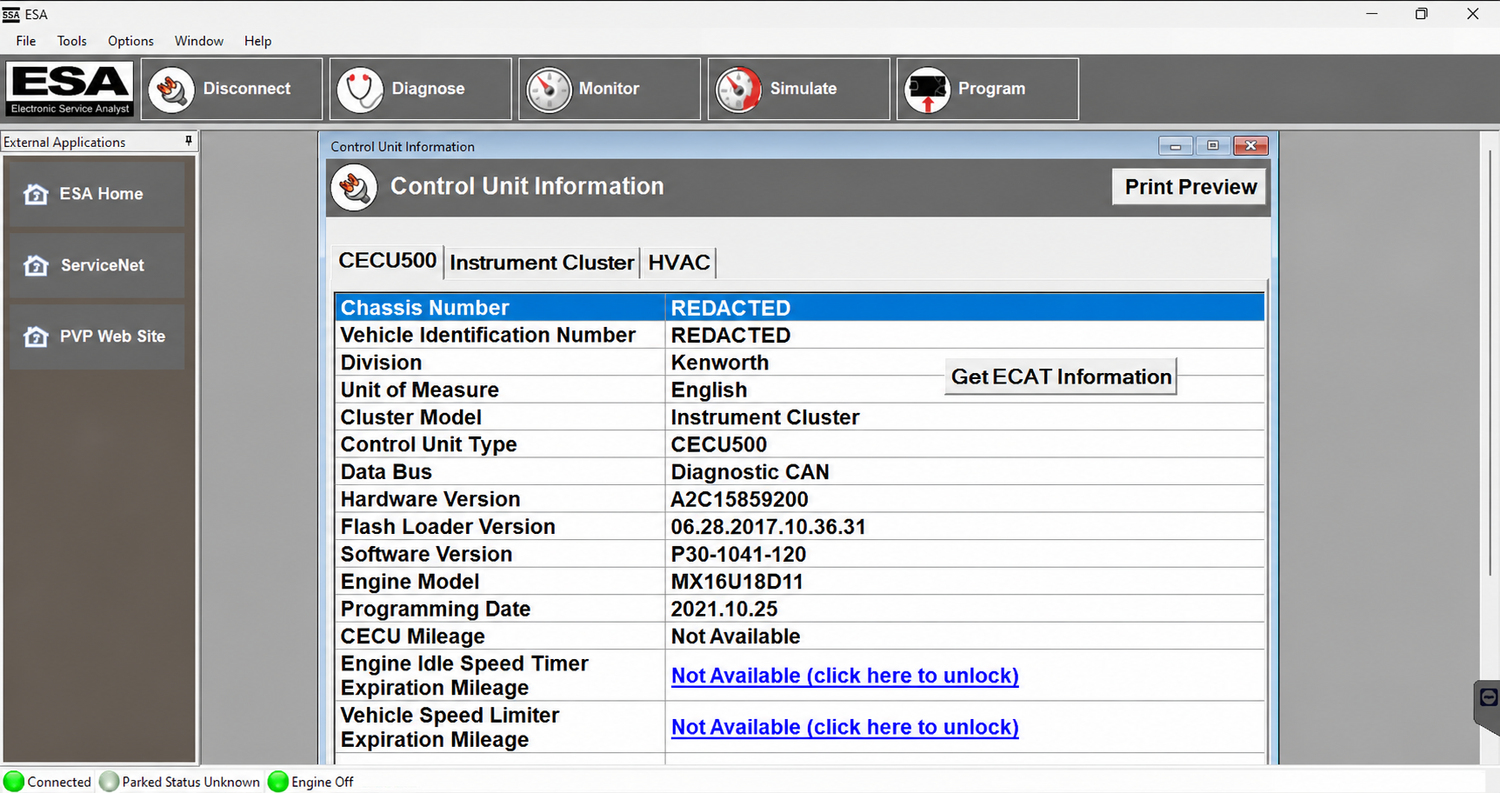

Control Unit Information example in ESA emulation mode. Available data varies by controller and truck configuration.

ESA, DAVIE4 and Cummins INSITE: Which Tool Do You Need?

If you searched for PACCAR MX-13 diagnostic software, the correct engine-focused application is generally DAVIE4. ESA can still be needed on the same Kenworth or Peterbilt truck for its vehicle-side electronics. A truck equipped with a Cummins engine may require both ESA for PACCAR vehicle systems and Cummins INSITE for the engine.

Does PACCAR ESA Work Offline?

Yes, this supplied ESA package is intended to perform its supported local diagnostic and programming-file functions after installation without a continuous internet connection. The included 2025 SW files are stored locally, and no active PACCAR ePortal subscription is included with this product.

You will need a stable internet connection for our TeamViewer installation session. Official account services, live ePortal content, newer calibration retrieval or functions outside the supplied package may still require separate authorized online access. Offline availability does not expand controller coverage or replace the correct OEM application.

Required RP1210 Diagnostic Adapter

PACCAR ESA software is not a standalone scanner. You need a working RP1210-compatible vehicle communication interface and the correct truck cable. Common choices include:

• NEXIQ USB-Link 2 or USB-Link 3
• Noregon DLA+ 2.0
• Dearborn Group DPA 5
• Other correctly installed RP1210C interfaces, subject to compatibility

The hardware adapter and cables are not included. We can help install the proper RP1210 driver and select the adapter inside ESA. Before ordering, use our diagnostic interface compatibility finder, visit the diagnostic adapter driver hub, or follow the NEXIQ USB-Link driver installation guide.

Windows System Requirements

• Windows 10 or Windows 11, 64-bit
• Administrator access during installation
• Reliable USB connection for the diagnostic adapter
• Enough free storage for ESA and the local SW programming files
• Stable internet during remote installation through TeamViewer
• Battery support appropriate for controller programming work

For workshop reliability, use a dedicated Windows laptop, disable sleep during vehicle communication and avoid low-quality USB hubs. If other OEM diagnostic applications are already installed, tell us before the session so we can check driver and RP1210 conflicts.

What Is Included

• PACCAR ESA 5.7.0 software for one PC
• 2025 SW programming files supplied with this package
• Remote installation and configuration through TeamViewer
• RP1210 adapter selection and basic communication setup
• Activation for the purchased computer
• Post-installation technical support

This is a software and remote-installation service; the laptop, adapter, vehicle cables, official ePortal account and DAVIE4 are not included. The installed license is for the purchased PC and must be used only for lawful service work on vehicles you are authorized to diagnose.

How Remote Installation Works

1. Complete your order and send us your Windows version plus adapter model.
2. Install TeamViewer and arrange an installation time with our technician.
3. We install PACCAR ESA 5.7.0, configure the local files and set up the compatible RP1210 driver.
4. When a truck and adapter are available, we help confirm basic communication before the session ends.

If you need several OEM applications on one laptop, see the 25-program truck diagnostic software bundle for NEXIQ USB-Link.

Frequently Asked Questions

Is PACCAR ESA the same as DAVIE4?

No. They are complementary PACCAR service applications. ESA focuses on supported Kenworth and Peterbilt vehicle electronics, while DAVIE4 is the engine-focused tool for PACCAR MX platforms.

Can PACCAR ESA diagnose an MX-13 engine?

Do not buy ESA alone for MX-13 engine ECM work. For PACCAR MX-11 and MX-13 engine diagnostics or programming, you generally need DAVIE4. ESA may still be required for the truck's cab and chassis controllers.

Can I use PACCAR ESA without internet?

Yes, the supplied local package is intended for supported offline work after installation. Internet is required for the TeamViewer setup, and official online services or files outside the supplied package are not included.

Does it work with NEXIQ USB-Link 3?

Yes, NEXIQ USB-Link 3 is a common RP1210 interface for this application when its driver and the correct truck cable are installed. NEXIQ USB-Link 2, Noregon DLA+ 2.0 and DPA 5 are also common choices.

Does the purchase include a diagnostic adapter?

No. This listing includes software, local SW files and remote installation for one PC. The adapter and cables are separate hardware.

Will it work on every Kenworth or Peterbilt?

No diagnostic application offers identical functions on every configuration. Coverage depends on the truck year, model, controller, engine and software level. Contact us with the VIN and required task for a pre-purchase check.

Where can I learn more before ordering?

Read our detailed guide, What Is PACCAR ESA?, browse the PACCAR diagnostic software collection, or message our technician.
