Nexiq USB-Link Driver Download — Models 1, 2 & 3
Match the correct driver to your VCI, see exactly which protocols and Windows versions each generation supports, and fix the connection errors that stop a scan before it starts.

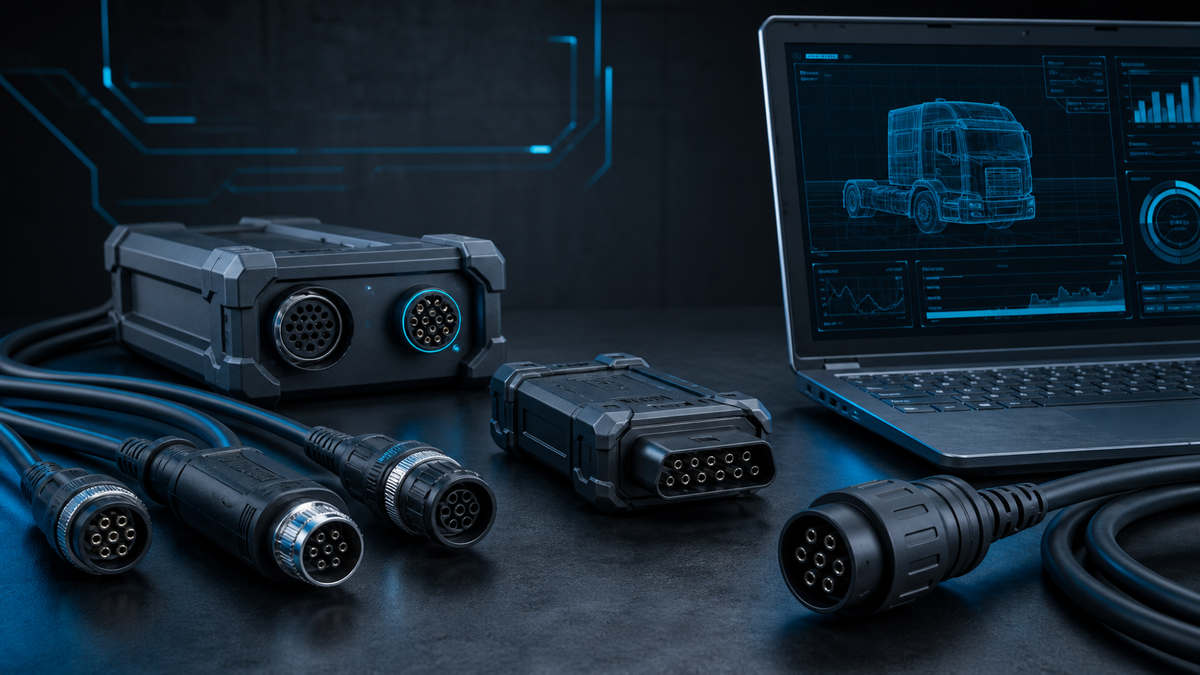

The Nexiq USB-Link is the vehicle communication interface (VCI) that connects a laptop to a truck, bus, or off-highway machine's diagnostic port. The adapter itself is only half the job — without the correct driver, your diagnostic software never sees the truck, and you're left staring at a "no adapter found" screen in the bay.
This guide does three things: it helps you identify which USB-Link you actually own, points you to the right driver from the official source, and walks through the install and the handful of issues that cause 90% of "not detected" calls. Everything below applies whether you run OEM software (Cummins INSITE, Detroit DDDL, PACCAR, Allison DOC) or universal tools like Noregon JPRO and TEXA.
01RP1210 and J2534, in plain terms
Two standards decide whether your software can talk through the adapter. Knowing the difference saves you a lot of guessing in the settings menu.
RP1210 is the trucking-industry standard. It's what almost every heavy-duty diagnostic application uses to reach the VCI, and it's why you select "NEXIQ USB-Link" from an adapter list inside the app. The letters that follow — RP1210 A/B/C/D — mark newer revisions that add things like multi-application access and faster data handling.
J2534 (also called PassThru) is the standard built around ECU reprogramming and flashing. Nexiq adapters implement a commercial-vehicle-focused, partial J2534 layer. If your task is reflashing a module, J2534 matters; for everyday fault-code and live-data work, RP1210 is what's doing the talking.
02USB-Link 1 vs 2 vs 3 at a glance
The fastest way to know what your adapter can and can't do. The current model is highlighted.
| Spec | USB-Link 1 | USB-Link 2 | USB-Link 3 |
|---|---|---|---|
| Status | Discontinued | Widely used | Current |
| Connection | USB | USB, optional Bluetooth/Wi-Fi | USB 2.0, Bluetooth 5.0, Wi-Fi (dual-band) |
| Windows | XP / 7 (32-bit) | 7 / 8 / 10 (32 & 64-bit) | 10 / 11 (64-bit) |
| Mobile OS | No | No | Android, iOS |
| RP1210 | A/B | A/B/C | A/B/C/D |
| J2534 | No | Partial (2004 draft) | Partial (2004 draft) |
| CAN FD | No | No | Yes |
| DoIP | No | No | Yes |
| Core protocols | J1939, J1708, CAN, ISO 9141, KWP2000 | J1939, J1708, CAN/ISO 15765, ISO 9141, KWP2000 | + J1939 FD, ISO 15765 FD, SWCAN, J1850 VPW, ALDL |
Not sure which one you have? Check the label on the adapter body — the model name is printed next to the Nexiq logo — or look at the connector style and whether it offers wireless.
03Nexiq USB-Link 1 driver
USB-Link™ 1 — the original
LegacyThe first-generation USB-Link set the standard for commercial-vehicle diagnostics and is now discontinued. It still runs in legacy shops on older PCs, but it's locked to 32-bit Windows and the early RP1210 revisions, with no CAN FD, no DoIP, and no J2534 flashing.
Legacy build for older 32-bit Windows. For the most trustworthy setup, download this file, scan it, and host a verified copy on your own server.
04Nexiq USB-Link 2 driver
USB-Link™ 2 — the workhorse
Most common in the fieldThe USB-Link 2 added speed, a rugged housing, and broader protocol coverage, and it's still the adapter you'll see most often on a tech's bench. Its 2.8.x driver branch is the one to install for current Windows machines; the older 2.7.x builds exist mainly for compatibility with legacy software versions.
Direct download from Nexiq's official server. If an older OEM tool requires a specific 2.7.x build, grab it from the "Other versions" page.
05Nexiq USB-Link 3 driver
USB-Link™ 3 — the current generation
Buy this for new trucksThe USB-Link 3 is the model Nexiq actively ships. It's the only generation with CAN FD and DoIP — increasingly required on the newest engines and emissions systems — and it adds full wireless connectivity over Bluetooth 5.0 and dual-band Wi-Fi, plus Android and iOS support. Its 3.x driver branch brought RP1210 and J2534 support for CAN FD and DoIP.
Direct download from Nexiq's official server. For wireless use, install over a wired USB connection first, then pair Bluetooth or join Wi-Fi from the USB-Link 3 configuration utility.
06Which driver — and which adapter — do I need?
If you already own the adapter, the answer is simple: install the latest driver branch for that exact model from the official source, and don't mix generations. The decisions below are for techs choosing what to buy or which driver to standardize on across a shop.
Choose USB-Link 3 if…
You service 2020-and-newer trucks, need CAN FD or DoIP, want wireless diagnostics, or run Windows 11 shop laptops. It's the future-proof choice and the only one Nexiq still produces.
Stay on USB-Link 2 if…
You already own one, work mostly on pre-2020 equipment, and your software doesn't require CAN FD/DoIP. It's reliable and well supported — there's no urgency to replace a working unit.
Only keep USB-Link 1 if…
A specific legacy application on an old 32-bit PC depends on it. For anything new, it's not worth fighting modern Windows.
07How to install the Nexiq USB-Link driver on Windows
The order of operations matters more than anything else. Installing with the adapter plugged in is the single most common reason a driver doesn't bind correctly.
- Unplug every adapter firstDisconnect the USB-Link and any other RP1210 device. If you ran older Nexiq WVL2 software, close its Explorer utility too.
-
Run the installer as administratorRight-click the driver
.exeand choose Run as administrator. Accept any Windows security prompt for the Nexiq-signed driver. - Let it finish, then rebootDon't skip the restart. It clears the old USB enumeration so Windows registers the device fresh.
- Connect the USB-Link after the rebootPlug it into a known-good USB port directly on the PC — avoid unpowered hubs.
- Verify in Device ManagerThe adapter should appear without a yellow warning icon. Use the Nexiq Device Tester to confirm communication.
- Select it inside your softwareOpen your diagnostic app's adapter/RP1210 settings and choose NEXIQ USB-Link as the active device.
08Troubleshooting: "USB-Link not detected"
Work through these in order. Most "dead adapter" reports turn out to be one of the first three.
Nothing changes in Device Manager when you plug it in
Try a different USB cable and a different port directly on the laptop (not a hub). A failed cable mimics a failed adapter. If you installed the driver with the device plugged in, uninstall, reboot, reinstall with it unplugged.
Driver won't load under Secure Boot
On some machines Secure Boot blocks the driver from binding. Use the manufacturer's documented Secure Boot resolution for the USB-Link 2, or temporarily adjust the setting per Nexiq's guidance, then reinstall.
Antivirus quarantines part of the install
Security software can silently block driver components. Temporarily disable real-time protection during installation, then re-enable it once the device is confirmed.
Device is detected, but the software still says "no adapter"
This is almost always a selection problem, not a driver problem. Open the app's RP1210 settings and explicitly choose the correct USB-Link. Also confirm the diagnostic port fuse on the vehicle — a blown data-link fuse leaves the adapter unpowered at the truck.
A new driver broke an old OEM tool
Roll back to the driver version that software was validated against. Newer branches aren't always backward-compatible with very old applications.
09Diagnostic software the USB-Link works with
The USB-Link is brand-agnostic through RP1210, so it drives both OEM and universal software. Common pairings you'll see in a diesel shop:
OEM: Cummins INSITE · Detroit Diesel Diagnostic Link (DDDL) · PACCAR ESA · International / Navistar · Allison DOC · Volvo / Mack PTT (via RP1210).
Universal: Noregon JPRO · TEXA IDC · Cojali Jaltest · Diesel Laptops / DG Technologies suites.
10Frequently asked questions
Do Nexiq USB-Link drivers work on Windows 11?
What's the difference between RP1210 and J2534?
Why is my USB-Link not detected after installing the driver?
Is the Nexiq USB-Link 2 still available to buy?
Which USB-Link should I buy for newer trucks?
Can one USB-Link driver serve multiple diagnostic programs?
