Agco Electronic Diagnostic Tool (EDT) 9.2025

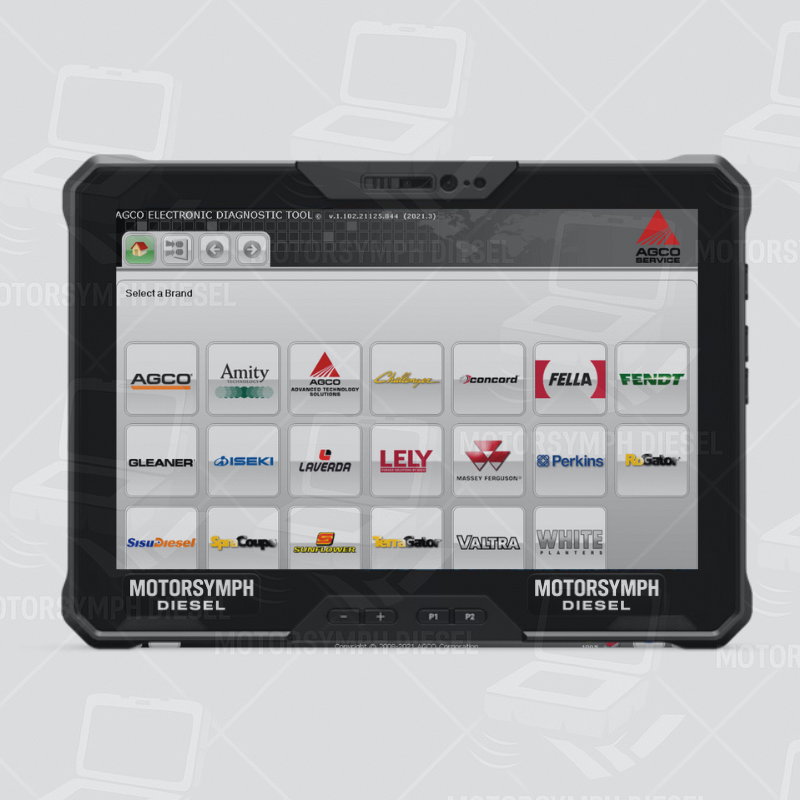

AGCO EDT (Electronic Diagnostic Tool) 9.2025 is dealer-level AGCO diagnostic software for supported AGCO and Massey Ferguson agricultural equipment. It helps technicians communicate with electronic control units, read and clear fault codes, monitor live data, run supported component tests, perform calibrations and manage service procedures from a Windows laptop.

This listing includes AGCO EDT 9.2025 and remote installation through TeamViewer on one compatible PC. A compatible AGCO communication interface and the correct machine cable are required for live diagnostics; hardware is not included.

What AGCO EDT Diagnostic Software Does

• Read and clear fault codes from supported electronic systems
• Monitor live data from sensors and control modules while the machine operates
• Review events and operating information to support an accurate diagnosis
• Run supported component and actuator tests before replacing parts
• Perform calibrations and service routines where the machine and access level permit
• View and adjust supported parameters using the correct service procedure
• Carry out supported controller updates only when authorized and with stable power

Supported AGCO and Massey Ferguson Equipment

AGCO EDT is used with supported electronically controlled agricultural equipment, including:

• AGCO equipment — supported tractors, harvesters, sprayers and implements
• Massey Ferguson — supported tractors and combines
• AGCO Power engines installed in compatible applications

Coverage and available functions depend on the machine model, serial number, controller and software dataset. Send us the model and serial number before ordering if you need a specific system, calibration or function confirmed.

AGCO EDT Interface and System Requirements

• Operating system: Windows 10 or Windows 11, 64-bit
• Communication hardware: compatible AGCO CAN diagnostic interface
• Machine connection: correct diagnostic cable for the equipment
• Internet: required for the TeamViewer installation and remote support session

The diagnostic adapter and machine cable are sold separately. Ask us to confirm the correct interface for your equipment.

A Practical AGCO Diagnostic Workflow

1. Record the machine model, serial number and reported symptom.
2. Connect the compatible interface and verify that Windows recognizes it.
3. Open AGCO EDT and establish communication with the supported controller.
4. Save active and logged fault information before clearing anything.
5. Compare codes with live data, wiring information and the correct service procedure.
6. Run only supported tests and calibrations with all safety conditions met.
7. Repair the cause, clear the fault and verify that it does not return.

A fault code identifies the system that detected a problem; it does not automatically prove that a sensor or controller must be replaced. Check power, ground, wiring, connectors and operating conditions before installing parts.

What Is Included

• AGCO EDT 9.2025 Electronic Diagnostic Tool software
• Remote installation on one Windows PC via TeamViewer
• Application setup and basic configuration
• Technical support after installation

Frequently Asked Questions

Is AGCO EDT the diagnostic tool for Massey Ferguson?

AGCO EDT is used with supported Massey Ferguson and AGCO equipment. Exact coverage depends on the model, serial number and electronic systems installed.

Can AGCO EDT read and clear fault codes?

Yes. Reading active and logged faults and clearing supported codes after the cause is repaired are core diagnostic functions.

Does it show live data?

Yes. On supported controllers, technicians can review sensor values, operating information and control-unit data in real time.

Can it calibrate components or update controllers?

Supported calibrations, parameter changes and controller updates can be available, but they depend on the machine, access level and service procedure. Use these functions only with authorization and stable power.

Do I need an AGCO diagnostic interface?

Yes. Software alone cannot communicate with the machine. You need a compatible AGCO CAN interface and the correct diagnostic cable; hardware is not included.

How is the software delivered?

Our technician installs and configures AGCO EDT remotely through TeamViewer on one compatible Windows PC.

AGCO Diagnostic Resources

• What Is AGCO EDT? Diagnostic software guide
• Browse all AGCO diagnostic software
• Heavy equipment diagnostic software guide
• Diagnostic adapter drivers and installation guides

Before You Order

Send us the machine model, serial number, Windows version, diagnostic interface and the functions you need. We will help confirm compatibility before installation.

Technical Support

• WhatsApp: +51 941 033 487
• Telegram: t.me/motorsymphdiesel
• Email: info@motorsymphdiesel.com

Motorsymph Diesel is an independent provider and is not affiliated with or endorsed by AGCO Corporation or Massey Ferguson. Brand names are used only to identify compatibility. Follow applicable licensing, safety and service requirements.
