Rolls-Royce  |  SKU: MTU-001

MTU DiaSys 2.74 Diagnostic & Programming Software for MTU Engines

$190.00
Tax included
✓Remote installation included
✓Activation verified by a technician
✓Technical support included
Delivery
REMOTE INSTALLATION INCLUDED

From checkout to working software.

No physical box. A real technician installs, activates and verifies everything with you.

01OrderComplete checkout securely.
02ScheduleWe contact you by email or WhatsApp.
03InstallWe connect through TeamViewer.
04ReadyWe verify it works before we finish.
✓ Technical support includedDiagnostic adapter required; not included unless stated.

Description

MTU DiaSys 2.74 is the official diagnostic and programming tool for MTU engines — the industry standard for MTU diesel and gas engines in marine, mining, power generation and rail applications. It communicates directly with MTU engine controllers to read faults, adjust parameters, record live data and run service functions.

Key Features & Capabilities

  • Comprehensive communication — interface with MTU engine controllers, RCS-5 remote control systems and MCS-5 monitoring systems
  • Advanced parameterization — adjust controller parameters and configure new ECU units precisely
  • Live data recording — record and analyze real-time sensor data and measurement values for deep diagnostics
  • Error management — read and clear Diagnostic Trouble Codes (DTCs) with detailed fault descriptions
  • Service functions — reset "Hot Shutdown" counters, perform "Splash Oil" calibrations and monitor emergency starts

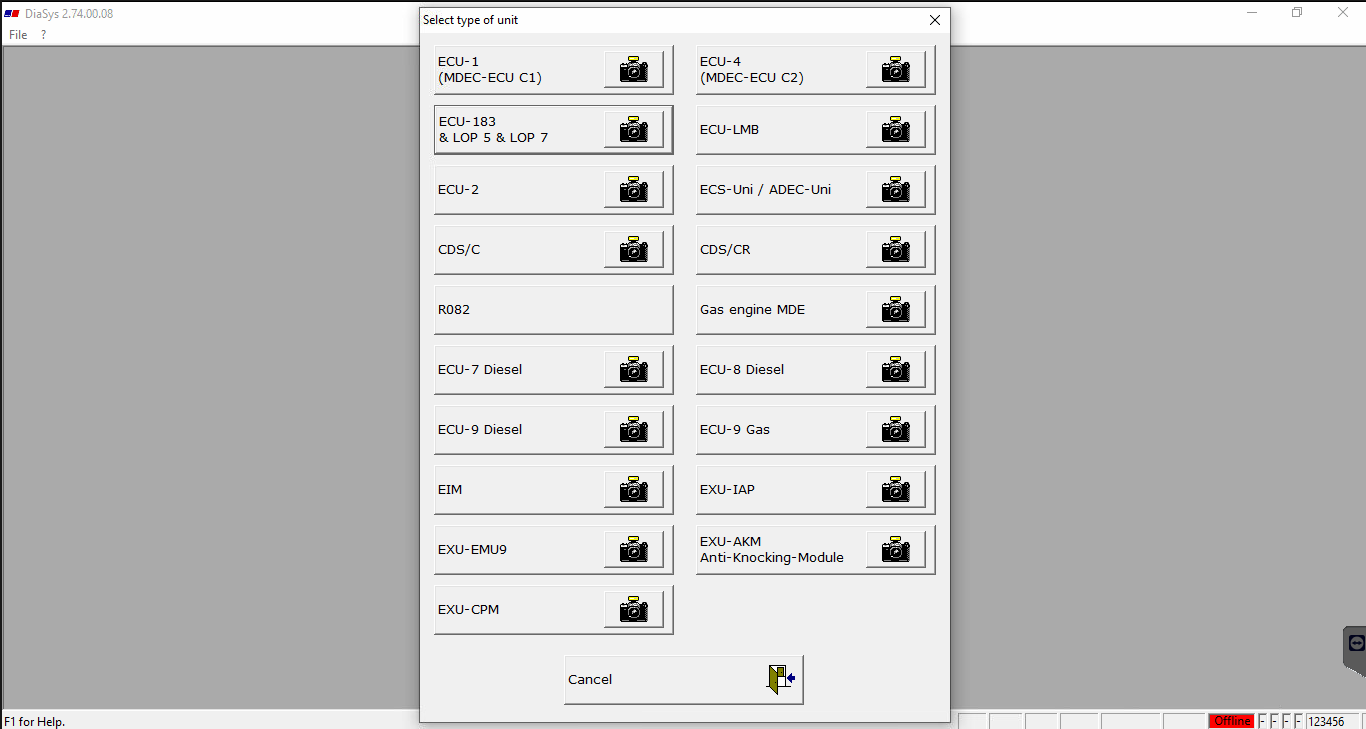

Supported Control Units (ECUs)

  • MDEC: ECU-1, ECU-2, ECU-4
  • ADEC: ECU-7, ECU-8, ECU-9 (Diesel & Gas)
  • Additional modules: SXU, EIM, EXU-IAP, LOP 5/7, MCS-5 / RCS-5 and more

Applications

MTU DiaSys covers MTU engines across marine propulsion and gensets, mining and construction equipment, power generation, and rail — including the Series 2000 and Series 4000 engine families.

Not sure if your MTU engine or controller is covered? Send us the model or ECU type and we'll confirm.

Service & Compatibility

  • Remote installation: full setup and configuration via TeamViewer, ready to use
  • Languages: multi-language interface including English, German, Spanish and more
  • Operating system: Windows 10 or 11 (64-bit)

Required Hardware Interface

  • Compatible IXXAT USB-to-CAN adapter for engine communication

The IXXAT adapter is not included and must be purchased separately. Ask us if you need one.

What's Included

  • MTU DiaSys 2.74
  • Remote installation via TeamViewer
  • Technical support after installation

Frequently Asked Questions

Which MTU engines and ECUs does it cover?

DiaSys communicates with MDEC (ECU-1/2/4) and ADEC (ECU-7/8/9, diesel & gas) controllers, plus SXU, EIM, EXU-IAP, LOP and MCS-5/RCS-5 modules, across MTU Series 2000 and 4000 engines. Send us your ECU type to confirm.

What adapter do I need?

A compatible IXXAT USB-to-CAN adapter to connect to the engine. It's not included with the software.

How is it delivered?

Remote installation via TeamViewer, scheduled at your convenience.
