Cummins INSITE 10 Pro Diagnostic Software [2026]

Cummins INSITE 10 Pro — Diagnostic Software with Fleet Cals, Zap-It and INCAL Online 2026

Cummins INSITE 10 Pro is dealer-level diagnostic and programming software for Cummins electronic engines. This professional Cummins INSITE diagnostic software provides access to engine data so technicians can diagnose faults, adjust parameters, run calibrations and flash ECMs without waiting for a dealer appointment. The package includes Fleet Calibrations, the Zap-It password utility and INCAL Online 2026 calibration access, with remote installation on one compatible Windows PC.

What's included

• Cummins INSITE 10 Pro — professional-level diagnostic and programming access
• Fleet Calibrations database
• Zap-It ECM password utility
• INCAL Online 2026 calibration access
• Remote installation and activation via TeamViewer for 1 PC
• 1 year of technical support

What Cummins INSITE 10 Pro lets you do

• Read and clear active and inactive fault codes with guided troubleshooting
• Monitor live data, including sensors, pressures, temperatures, graphs and recordings
• Run functional tests such as cylinder cut-out, actuator tests, forced regeneration and resets
• Edit ECM parameters and configuration, including road speed, idle shutdown, PTO and gearing
• Perform injector and fuel-system calibrations
• Flash and update ECMs using INCAL calibration files
• Export diagnostic session reports and logs

What's new in INSITE 10

• New and updated diagnostic tests
• Expanded advanced ECM data
• Additional features and configurable parameters
• New product and engine support
• Updated Cummins software services and installation components

Supported Cummins engines

INSITE 10 supports a wide range of Cummins electronic engines, including ISX15, X15, X12, ISM, M11, N14, ISL, ISL9, L9, ISC, ISB, B6.7, ISF2.8, ISF3.8, Signature and off-highway QSB, QSC, QSL, QSX and QSK applications. Exact coverage depends on the ECM and calibration revision.

Supported equipment

• On-highway: trucks, tractors, buses and RVs
• Construction and mining: excavators, dozers, haul trucks and drills
• Agriculture: tractors, harvesters, sprayers and irrigation equipment
• Marine and power generation: electronically controlled Cummins applications

Compatible diagnostic adapters

• Cummins INLINE 7 and INLINE 8
• Cummins USB-Link 3
• NEXIQ USB-Link 2 and USB-Link 3
• DG Technologies DPA5
• Noregon DLA+ and DrewLinQ
• Compatible RP1210A, RP1210B and RP1210C adapters

For ECM programming and calibration work, use a stable wired connection and a high-quality compatible adapter.

Cummins INSITE 10 system requirements

Remote installation and delivery

Installation is performed remotely by one of our specialists using TeamViewer. You schedule a convenient time, we connect to your PC, install and configure Cummins INSITE 10, and verify communication with your diagnostic adapter before disconnecting. Typical setup takes 1 to 2 hours, with same-day scheduling available.

Frequently asked questions

Does Cummins INSITE 10 work with NEXIQ USB-Link 3?

INSITE 10 works with compatible RP1210 adapters, including NEXIQ USB-Link interfaces. A wired connection is recommended for calibration and ECM programming.

What is the difference between INSITE Pro and INSITE Lite?

INSITE Lite is intended for basic diagnostics and data viewing. INSITE Pro adds advanced capabilities such as parameter editing, calibrations, ECM programming and additional functional tests.

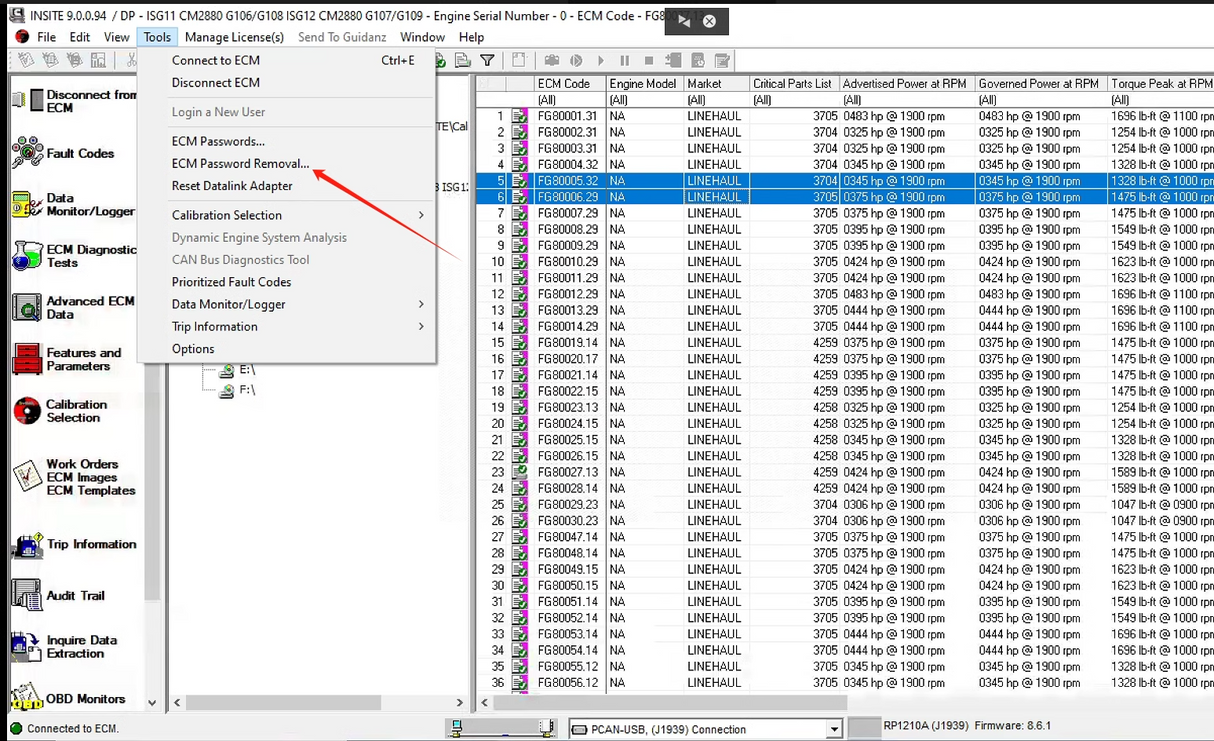

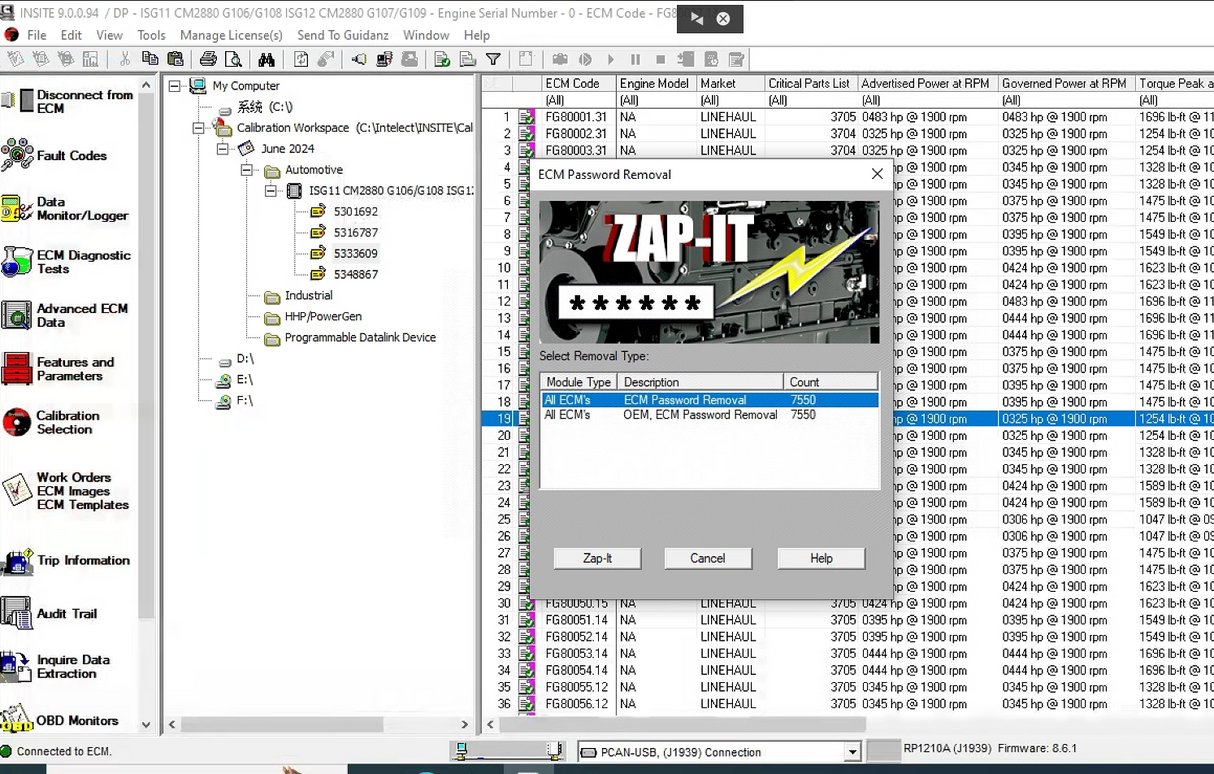

What does Zap-It do?

Zap-It is used to remove supported ECM passwords so an authorized technician can access protected parameters.

Do I need INCAL to flash an ECM?

INCAL provides Cummins calibration files used for supported ECM programming. This package includes INCAL Online 2026 access.

Is this a Cummins INSITE 10 software download?

The software is delivered digitally with remote installation and configuration. Our technician installs Cummins INSITE 10 on your compatible PC and checks the setup before completing the service.

What does the Cummins INSITE price include?

The displayed price includes Cummins INSITE 10 Pro for one compatible Windows PC, Fleet Calibrations, Zap-It, INCAL Online 2026 access, remote installation and one year of technical support. A diagnostic adapter is not included unless stated as a separate option.

Does Cummins INSITE 10 work on Windows 11?

Yes, this package supports a compatible 64-bit Windows 11 or Windows 10 PC. We check the operating system and available storage before installation.

How many computers can I install it on?

The listed package covers one PC. Contact us if you need additional workstations.

Need a multi-brand diagnostic package?

We can bundle Cummins INSITE with Caterpillar ET, Detroit Diesel Diagnostic Link, JPRO, Volvo VCADS or PACCAR DAVIE, and help select a compatible adapter for your fleet. Contact us on WhatsApp or email info@motorsymphdiesel.com.

Related Cummins software

Need engineering-level ECM calibration instead of everyday service diagnostics? Compare Cummins Calterm 5.16. You can also read our guide: Cummins INSITE vs Calterm vs PowerSpec.
