Navistar NED 2025 — International Truck Diagnostic Software

Navistar Engine Diagnostics (NED) 2025 is professional International truck diagnostic software for supported Navistar and International electronic engine systems using J1939. It helps technicians read and clear fault codes, monitor and graph live engine data, run supported service-bay tests, review trip information, and adjust configurable engine parameters.

Remote installation and setup are included. We install NED on one compatible Windows computer through TeamViewer, configure the selected RP1210 adapter, and verify that the application opens correctly. The vehicle communication adapter is sold separately.

What Is Navistar NED Software?

Navistar NED—also searched as NEDS—is an engine diagnostic application intended for mixed fleets, repair shops, owner-operators, and technicians servicing supported International and Navistar engines. Coverage and available functions depend on the engine family, production year, vehicle configuration, adapter, and access level.

Important: NED is primarily an engine diagnostic and parameter tool. Body-controller programming may require Diamond Logic Builder, while later International applications may require Navistar SDS. Calibration programming or online functions can require separate credentials, subscriptions, or NavKal access.

Navistar Engine Diagnostics Main Functions

• Read and clear diagnostic trouble codes on supported engine and aftertreatment systems

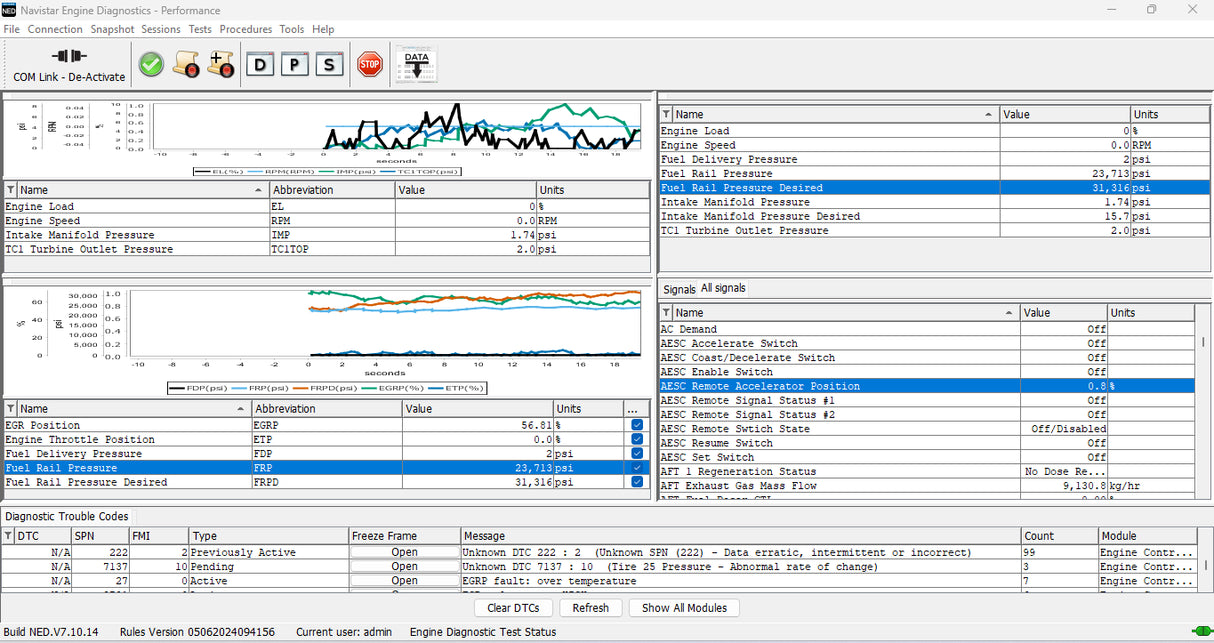

• View and graph live engine data, signals, and parameters
• Display and change supported configurable parameters
• Run diagnostic and service-bay tests where supported
• Review and print trip or vehicle reports
• Perform supported DPF and SCR service routines
• Work with J1939 International electronic engine systems

Supported Diagnostic Tests and Parameters

Available tests vary by engine and calibration. Common supported functions can include:

• KOEO — Key On, Engine Off tests
• KOER — Key On, Engine Running tests
• Injector buzz and injector contribution tests
• Cylinder cutout and injector-disable tests on supported EPA applications
• Fan-control and idle-shutdown parameters
• PTO-control and vehicle-speed settings
• Warning, protection, retarder, and related configurable parameters

Supported Navistar and International Engines

• MaxxForce 5 and MaxxForce 7
• MaxxForce 9 and MaxxForce 10
• MaxxForce 11 and MaxxForce 13
• MaxxForce 15
• MaxxForce DT
• Navistar N9 and N10 with SCR
• Navistar N13 with SCR

Common production coverage includes 2007 and 2010 MaxxForce applications plus supported 2013–2015 N-series SCR engines. Engine family and production year are more reliable than the truck badge. Send the VIN and engine serial number before ordering if you need exact confirmation.

Supported International Trucks and Buses

Common applications include International 9000i, DuraStar, TerraStar, TranStar, WorkStar, PayStar, ProStar, LoneStar, LT, MV, HV, HX, RH, CityStar/CF, CXT, MXT, severe-service models, and supported International buses.

Vehicle name alone does not guarantee coverage because the same truck model may use different engines and electronic systems.

Compatible RP1210 Diagnostic Adapters

• NEXIQ USB-Link 2 and USB-Link 3
• Noregon DLA and supported DLA models
• Dearborn DPA 5
• Other compatible RP1210 adapters with the required J1939 support

Adapter not included. The correct RP1210 driver must be installed before vehicle communication. Use our diagnostic-interface compatibility finder or send us your adapter model for confirmation.

NED vs SDS vs Diamond Logic Builder vs ServiceMaxx

Remote Installation Process

1. Place your order.
2. Send the VIN, engine model, requested function, and adapter model so we can confirm the correct software.
3. Schedule the TeamViewer session and have the adapter available.
4. We install and configure NED on one compatible Windows PC.
5. We verify the application and adapter configuration before completing the session.

System Requirements

• Windows 10 or Windows 11
• 64-bit Windows recommended
• Administrative access to the computer
• Stable internet connection during remote installation
• Compatible RP1210 adapter and manufacturer driver for vehicle communication

Send your Windows version and adapter model before ordering if you want us to verify compatibility.

What Is Included

• Navistar Engine Diagnostics NED 2025 edition
• Remote installation and basic configuration for one compatible Windows PC
• Technical assistance with initial setup

Not included: laptop, RP1210 adapter, vehicle cables, third-party subscriptions, OEM online credentials, or separately licensed programming services.

Frequently Asked Questions

Is NED the correct International truck diagnostic software for my vehicle?

It depends primarily on the engine family and production year. Send the VIN, engine serial number, requested operation, and adapter model before ordering.

Can Navistar NED perform a forced DPF regeneration?

NED includes supported aftertreatment tests and service routines, but availability depends on the engine, calibration, active fault conditions, and access level. Confirm the exact engine before purchasing.

Can NED program an ECM?

NED supports diagnostic functions and configurable parameters. Calibration flashing, blank-module programming, or online programming may require NavKal, SDS, OEM credentials, or another licensed workflow.

Does NED replace Diamond Logic Builder?

No. NED focuses on supported engine systems. Diamond Logic Builder is used for International body-controller and chassis-electrical configuration.

What diagnostic adapter is required?

A compatible RP1210 adapter with the correct driver and J1939 support, such as a supported NEXIQ USB-Link, Noregon DLA, or Dearborn DPA 5.

How is the software delivered?

Delivery is completed through a scheduled TeamViewer remote-installation session. No physical item is shipped.

Related International and Navistar Software

• Navistar SDS
• International Diamond Logic Builder
• ServiceMaxx Pro
• Navistar OnCommand Service Information
• All Navistar diagnostic software

Navistar NED Technical Guides

• Navistar NED vs SDS vs ServiceMaxx: Which Tool Do You Need?
• How to Connect Navistar NED to NEXIQ USB-Link 2 or 3

Technical Support

• WhatsApp: +51 941 033 487
• Telegram: t.me/motorsymphdiesel
• Email: info@motorsymphdiesel.com

Navistar, International, NED, SDS, Diamond Logic, MaxxForce, NEXIQ, Noregon, and Dearborn marks belong to their respective owners. Coverage and available functions vary by engine, vehicle, calibration, hardware, and access.
