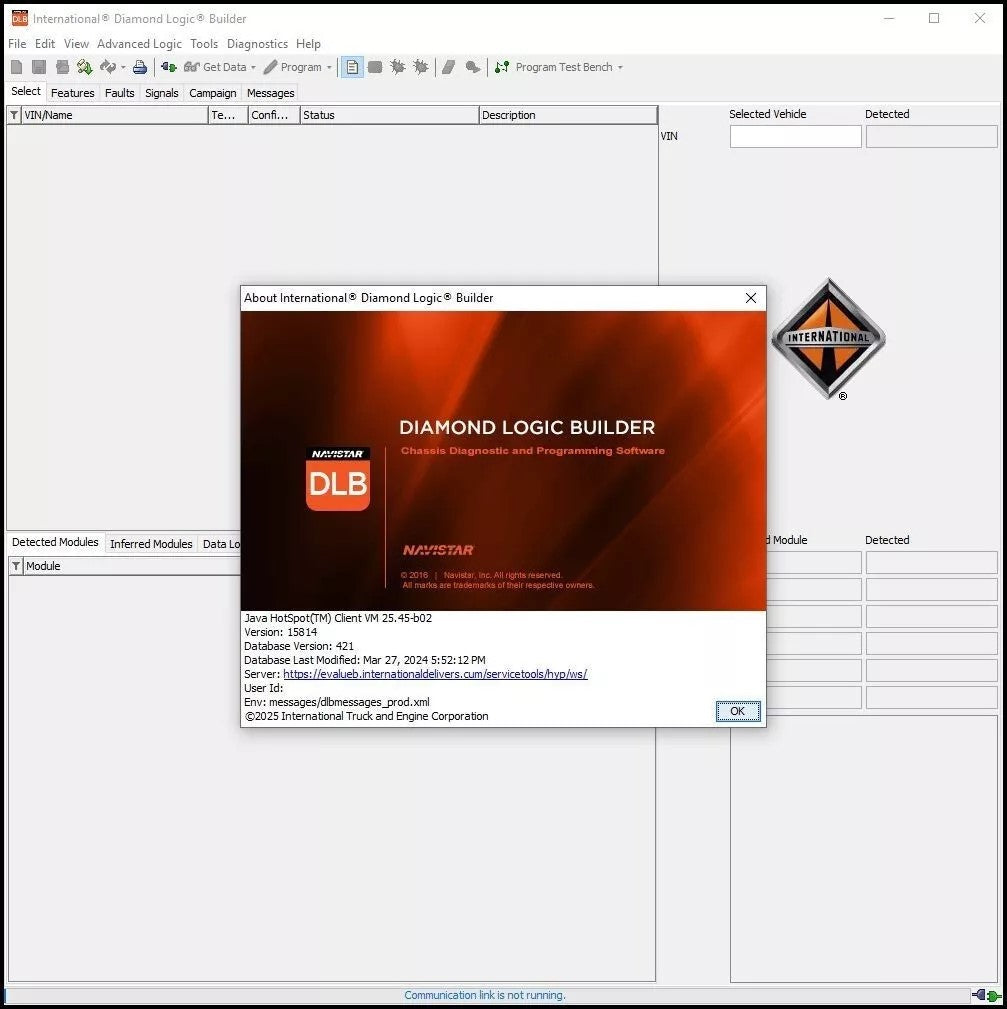

International Diamond Logic Builder (DLB) is cab and chassis electrical diagnostic and configuration software for International trucks and IC Buses equipped with the Diamond Logic electrical system. It communicates with supported cab/body controllers so technicians can read electrical fault codes, monitor vehicle signals, test components and work with programmable chassis features.
This listing includes remote installation of the available Diamond Logic Builder software package on a compatible Windows computer. The exact build, access level and any online or OEM-account services should be confirmed before ordering.
Use Diamond Logic Builder for supported cab, body and chassis electrical systems. For Navistar engine ECM diagnostics, use Navistar Engine Diagnostics (NED) or the application required by the engine and model year.
Diamond Logic Builder Diagnostic Functions
- Read and clear cab/chassis electrical DTCs from supported International controllers
- View vehicle features and programmable parameters
- Monitor and graph live electrical signals in text or graphical format
- Run supported bidirectional tests on switches, lights and other electrical components

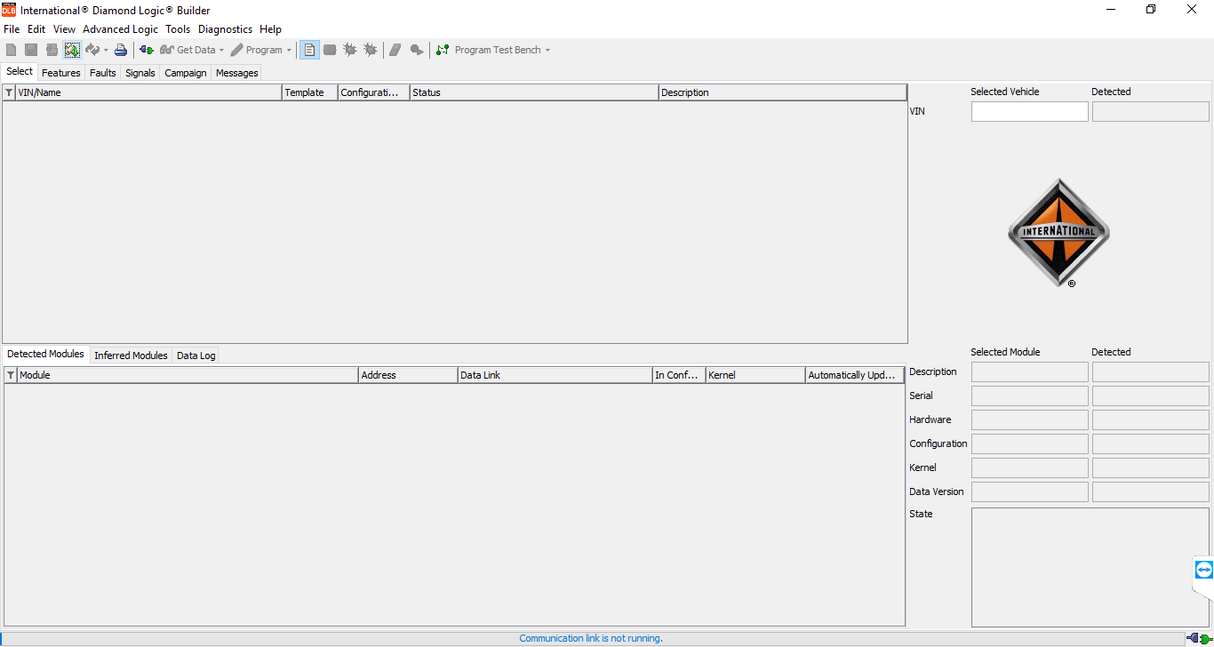

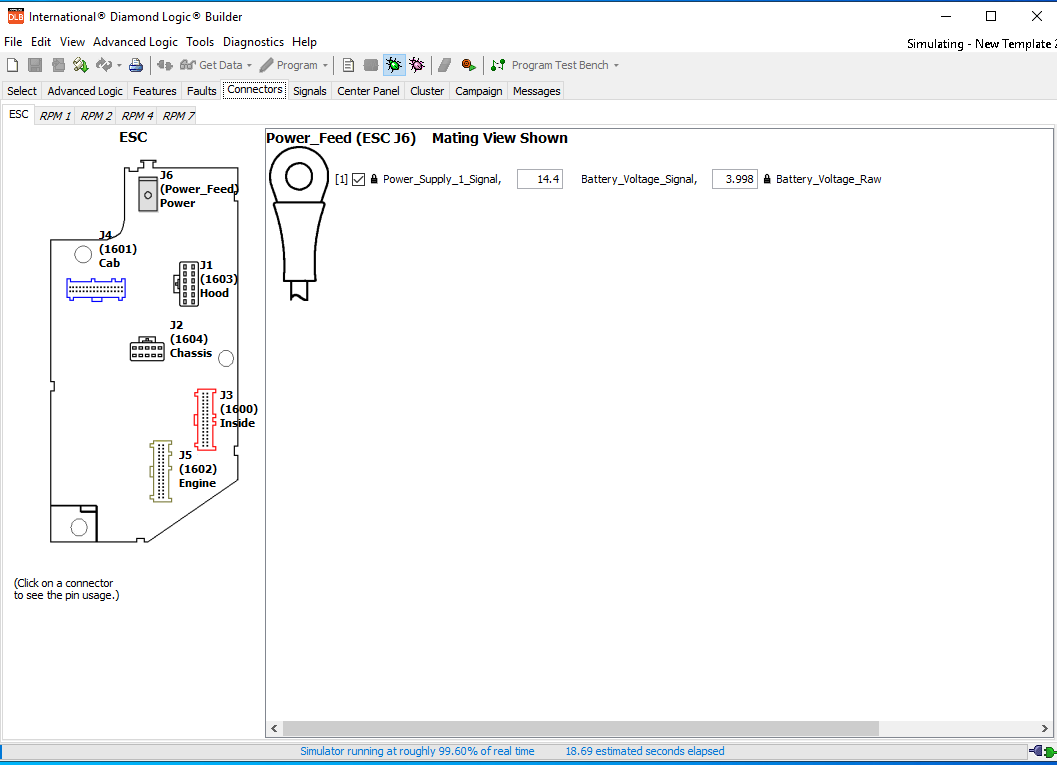

- Detect connected modules automatically on supported vehicles

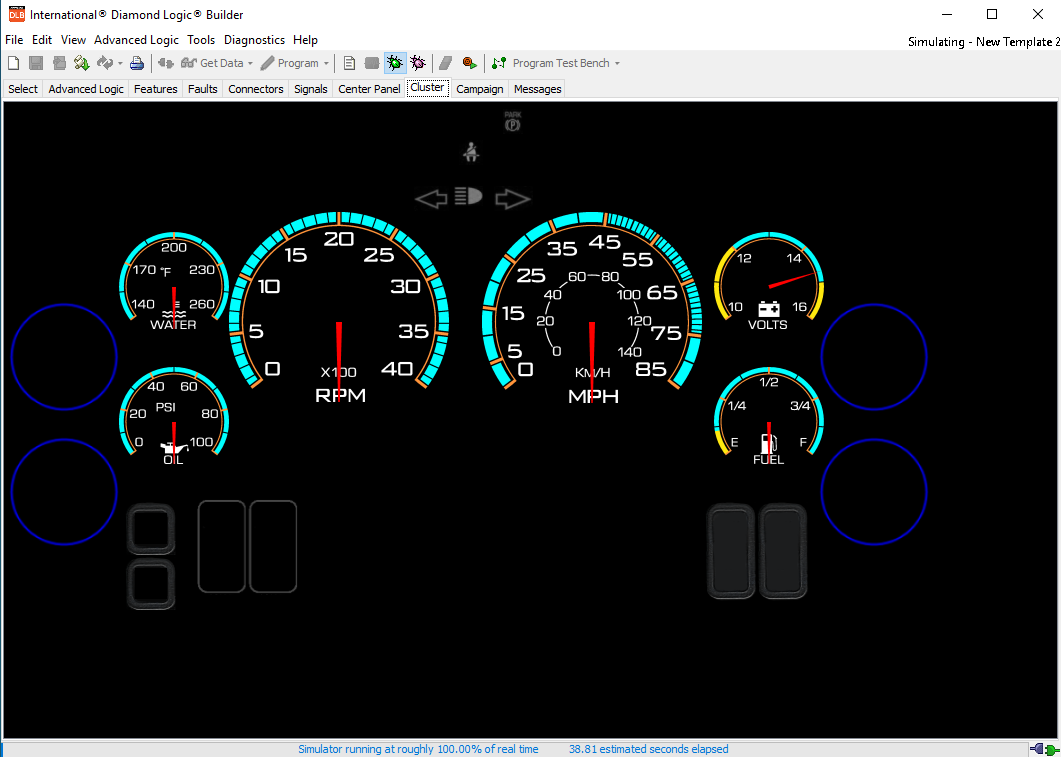

- View switch locations and cluster configuration
- Record diagnostic snapshots for intermittent electrical problems
- Work with supported body-builder and chassis features when the required permission level is available
Available functions depend on the vehicle, controller, software build and permission level. Do not interrupt power or communication while writing parameters or programming a controller.
Diamond Logic Builder Levels 1, 2 and 3
| Access level | Typical capability | Official requirement |
|---|---|---|
| Level 1 | Diagnostics, DTCs, data viewing and troubleshooting | Active product access |
| Level 2 | Level 1 functions plus supported parameter programming | Navistar web-based training is normally required |
| Level 3 | Advanced logic and custom body/chassis feature programming | Instructor-led Navistar training is normally required |
Access notice: Installing the DLB application does not automatically grant official Level 2 or Level 3 permissions, Navistar training status, an OEM account, server access or an annual OEM subscription. Contact us before ordering if a specific programming function or official online service is required.
What Can Be Configured With Diamond Logic?
Depending on the truck and available access, Diamond Logic features can support vocational body and chassis integrations such as:
- PTO engagement logic and safety interlocks
- Work lights, warning lights and pre-trip light inspection
- Boom, outrigger and equipment-status interlocks
- Dash and remote switch functions
- Load shedding and selected equipment-protection logic
- Vehicle features and programmable chassis parameters
Not every feature is available on every truck. Always save the original configuration and follow the correct body-builder and service information before making changes.
DLB vs. NED vs. ServiceMaxx
| Software | Primary use | Choose it when |
|---|---|---|
| Diamond Logic Builder | International cab, body and chassis electrical diagnostics/configuration | You need electrical DTCs, live signals, switches, interlocks or supported chassis parameters |
| Navistar NED | Supported Navistar engine diagnostics and service routines | You need to diagnose a supported International/Navistar engine ECM |
| ServiceMaxx | Legacy MaxxForce and earlier engine applications, depending on version | The engine/model year requires the older diagnostic platform |
Supported International Trucks and IC Buses
DLB is intended for International trucks and IC Buses equipped with supported Diamond Logic cab/body controllers. Common applications can include:
- International 4200, 4300 and 4400 Series
- International 7000 and 8000 Series
- International DuraStar, WorkStar, TranStar and CityStar
- International ProStar, LoneStar, LT, HX, HV and MV
- Selected International CF Series and IC Bus applications
Coverage and available functions vary by model year, controller and electrical configuration. Send us the model, year, VIN and intended task before purchasing if compatibility is uncertain.
Compatible Diagnostic Adapters
Communication requires a compatible RP1210A vehicle interface and the correct International vehicle cable. Common shop interfaces include NEXIQ USB-Link 2 or USB-Link 3 and other supported RP1210 devices.
The adapter and vehicle cable are not included with this software listing. Check our diagnostic interface compatibility finder or download the correct package from our adapter driver page.
Computer Requirements
- Windows 10 or Windows 11, 64-bit recommended
- 8 GB RAM recommended
- At least 8 GB of available storage for installation files and backups
- USB port for the RP1210 diagnostic adapter
- Stable internet connection during remote installation and for services that require online access
What Is Included
- Installation of the available International Diamond Logic Builder package
- Initial application and RP1210 interface configuration
- Remote installation via TeamViewer
- Post-installation technical support
This listing does not represent that Motorsymph Diesel is an International/Navistar dealer. Official product keys, annual subscriptions, training permissions and online OEM services are not included unless specifically confirmed in writing.
How Remote Installation Works
- Place the order and prepare a compatible Windows computer.
- Install TeamViewer and arrange a convenient session with our technician.
- We install and configure the available DLB package and the selected RP1210 interface.
- You connect the adapter to a compatible vehicle and verify communication.
Frequently Asked Questions
What is Diamond Logic Builder used for?
DLB diagnoses and configures supported International cab, body and chassis electrical systems. It reads electrical DTCs, displays vehicle signals and can work with supported programmable features when the required access is available.
Does Diamond Logic Builder diagnose the engine?
DLB is primarily for the International cab/chassis electrical system, not engine ECM diagnostics. Use Navistar NED, ServiceMaxx or the engine manufacturer's diagnostic application as required.
Does installing DLB automatically provide Level 3 access?
No. Official Level 2 and Level 3 permissions normally depend on Navistar training and authorization. Confirm the access included with this listing and the exact programming task before ordering.
Can DLB program PTO and body-builder features?
DLB can work with supported PTO, interlock, lighting, switch and custom body/chassis logic when the vehicle and permission level support those functions. Availability is not universal.
Which adapter do I need?
A compatible RP1210A interface and the correct vehicle cable are required. NEXIQ USB-Link 2 and USB-Link 3 are common choices. Send us your adapter model before ordering if you need confirmation.
Is an official Navistar annual subscription included?
No official annual subscription, OEM account or online service should be assumed unless it is specifically listed and confirmed in writing. International currently sells its official DLB product key on an annual basis.
Diamond Logic Builder Resources
- Navistar NED engine diagnostic software
- Navistar NED vs. Diamond Logic Builder guide
- NEXIQ vs. Noregon vs. INLINE adapter guide
- Diagnostic adapter drivers
Technical Support
For a compatibility check, send Motorsymph Diesel the model, year, VIN, engine, controller and the function you need to perform.
