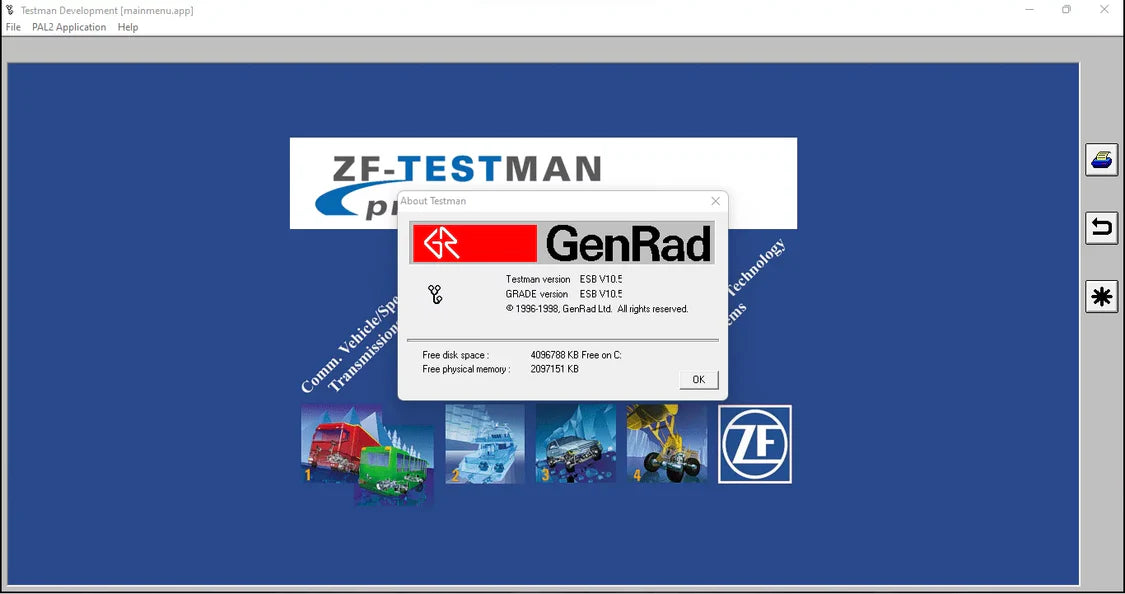

ZF Testman Pro 10.5 (2022) — ZF Transmission Diagnostic Software

ZF Testman Pro Development 10.5 (2022) is the official ZF diagnostic system for all electronically controlled ZF products. It retrieves every transmission-specific data set needed for fast, comprehensive diagnosis — covering commercial vehicle and special transmissions, steering systems, marine propulsion and off-road driveline technology. This is the professional-grade ZF diagnostic tool for heavy-duty transmissions and driveline systems.

Supported Commercial Vehicle & Special Transmissions

• ASTRONIC (1, 2, mid, lite, lite test rig, 2 assembly inspection, 2 test rig)
• ECOMAT (1, 2/4, HP 260 CAN-Converter)
• INTRADER (EST32, EST42/48)
• AVS
• eTRONIC
• WSK EST 41/61

Supported Steering Systems

Commercial vehicle steering:

• ZF Servocom RAS-EC (RAS-EC ISO, RAS-EC KWP)
• ZF Servocomtronic (Servotronic F)

Automobile car steering:

• EHPS (BMW R50, OPEL EP2)
• ZF Servolectric (BMW E85, APA E72, APA E90, VW PQ35/45 + Audi TT, VW PQ35-3)
• ZF Active Steering (BMW E60 PL1, E70 PL4, E90 PL2)
• ZF Servotronic (Servotronic F)

Supported Off-Road Driveline & Axle Systems

• ERGOPOWER (WG110-WG311, 2-3 WG-94, EST 117/125 - 119/126)
• T7000 (T7100 EST38, T7200 EST38, T7300 EST38, T7000 EST45/57/57A / PVS LS EST57A)
• ECCOM (John Deere, Claas)
• T557 EST57A
• HC 85

Supported Marine Propulsion

• BW marine propulsion systems

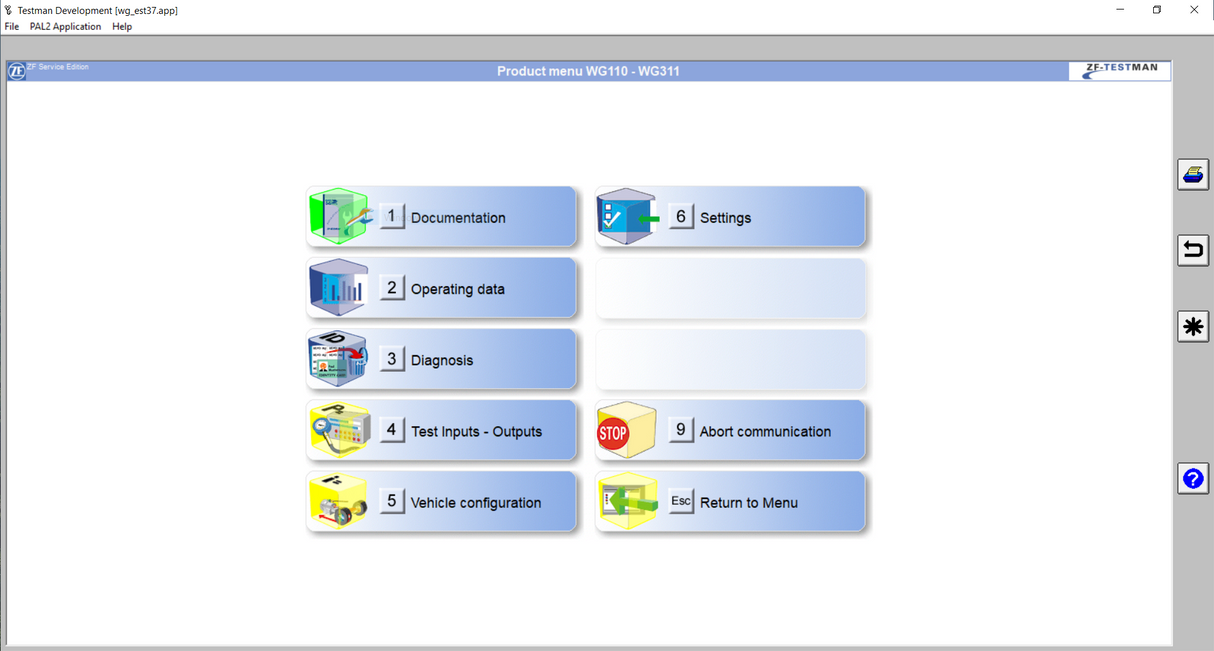

Diagnostic Functions

• Read current errors and error memory
• Delete error memory
• Read identification block and vehicle data sheet

Test Inputs and Outputs

• System-check standstill and system-check run
• Test unit — indication of all digital inputs and outputs
• Indication of all digital and analog values: speeds, currents and voltages

Repair Support

• Tightening torques, setting data and pressures
• Special tools and test equipment
• Maintenance and repair procedures
• Circuit diagrams and electrical readouts (PDF format)

Vehicle configuration: depending on the product, all vehicle-specific data can be stored, and shift programs selected and adjusted.

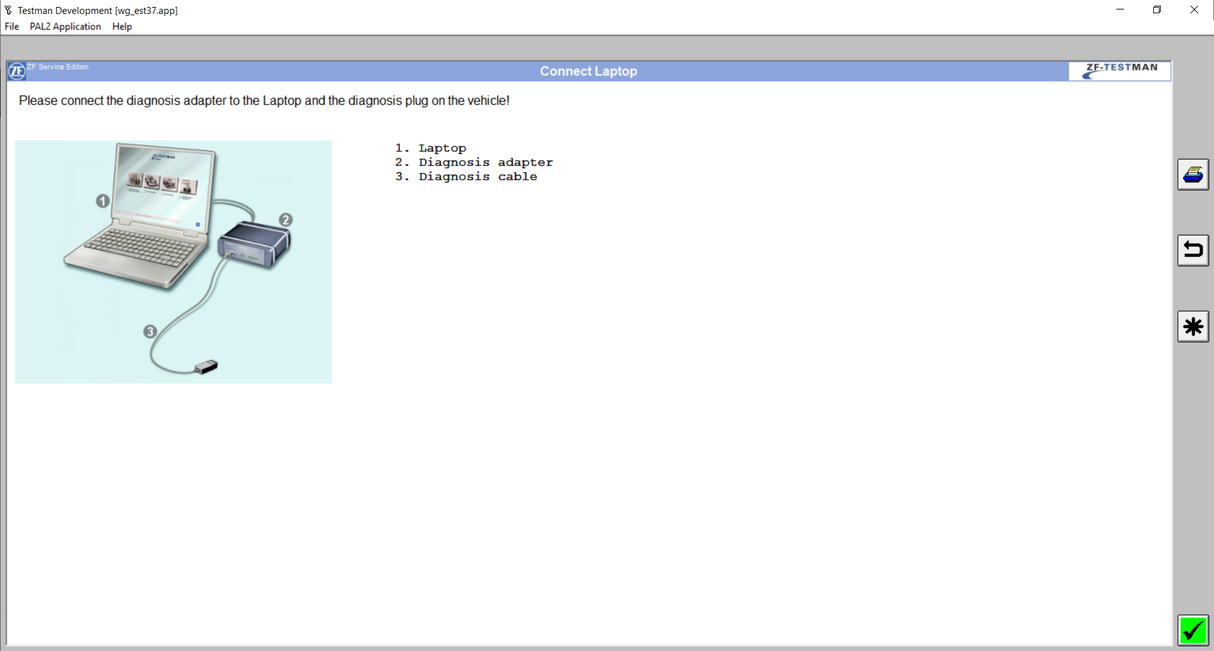

Compatible Interface

ZF Testman requires a compatible ZF diagnostic interface (such as the ZF-Testman / OpenSAE interface or an approved equivalent) to connect to the transmission or system.

The diagnostic interface/adapter is not included and must be purchased separately. Ask us which one suits your ZF system.

System Requirements & Languages

• Windows 10 or 11 (64-bit)
• Interface languages: English, German, French, Spanish, Italian, Portuguese

What's Included

• ZF Testman Pro Development 10.5 (2022)
• Remote installation via TeamViewer
• Technical support after installation

Frequently Asked Questions

What's the difference between Testman Pro and Meritor TransSoft?

Testman Pro is ZF's own diagnostic system for the full range of electronic ZF products — ASTRONIC, ECOMAT, eTRONIC transmissions, steering, axles and marine. TransSoft is specific to ZF Meritor FreedomLine and SureShift transmissions. Choose Testman for ZF-branded transmissions and driveline systems.

Which transmissions does it cover?

ASTRONIC, ECOMAT, INTRADER, AVS, eTRONIC and WSK transmissions, plus ZF steering systems, ERGOPOWER/T7000/ECCOM axle and driveline systems, and BW marine propulsion. Send us your ZF model to confirm.

Do I need an adapter?

Yes, a compatible ZF diagnostic interface is required. It's not included — ask us which one fits your system.

How is it delivered?

Remote installation via TeamViewer, scheduled at your convenience.

Questions about compatibility before you buy? Message us on WhatsApp (+51 941 033 487) and we'll confirm your ZF system.
